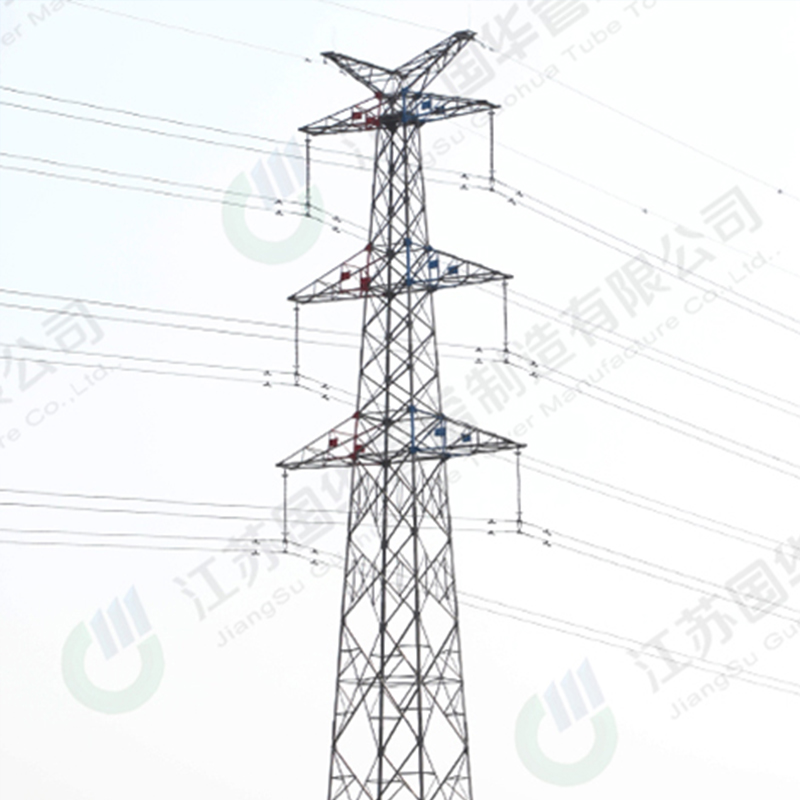

Electricity Pylon

Scientific structural design and high-quality materials ensure mechanical performance and weather resistance under complex conditions:

● Main Structure: Core is spatial truss; rods use single/combined angle steel, connected by high-strength bolts. Key components adopt precision welding to enhance load-bearing. Mechanics-based design ensures clear force transmission and strong deformation resistance, dispersing conductor weight, ice and wind loads.

● Base Materials: High-strength steel (Q235, Q345) with excellent tensile strength and toughness, matched to tower height (10-60m; special types over 77m) and load requirements.

● Anti-Corrosion Process: Automatic hot-dip galvanizing forms a dense barrier, resisting coastal salt spray, industrial pollution, etc., extending service life.

1. Classification & Core Types

●  By Purpose: Tension pylons (conductor tension), straight pylons (vertical loads), angle pylons (line steering), terminal pylons (line ends), long-span pylons (river/canyon crossing); portal pylons solve extreme environment support issues.

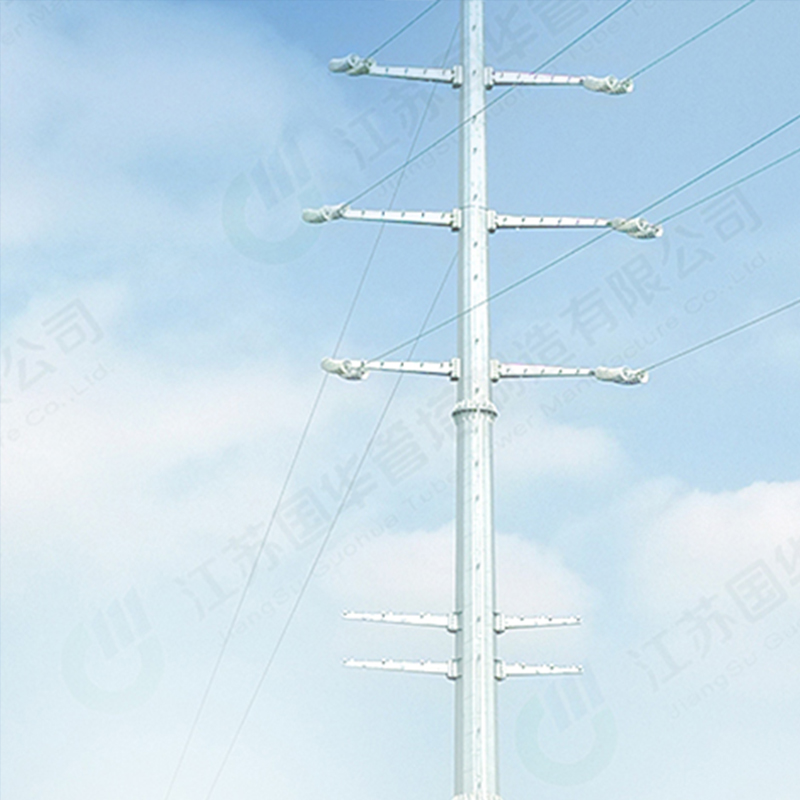

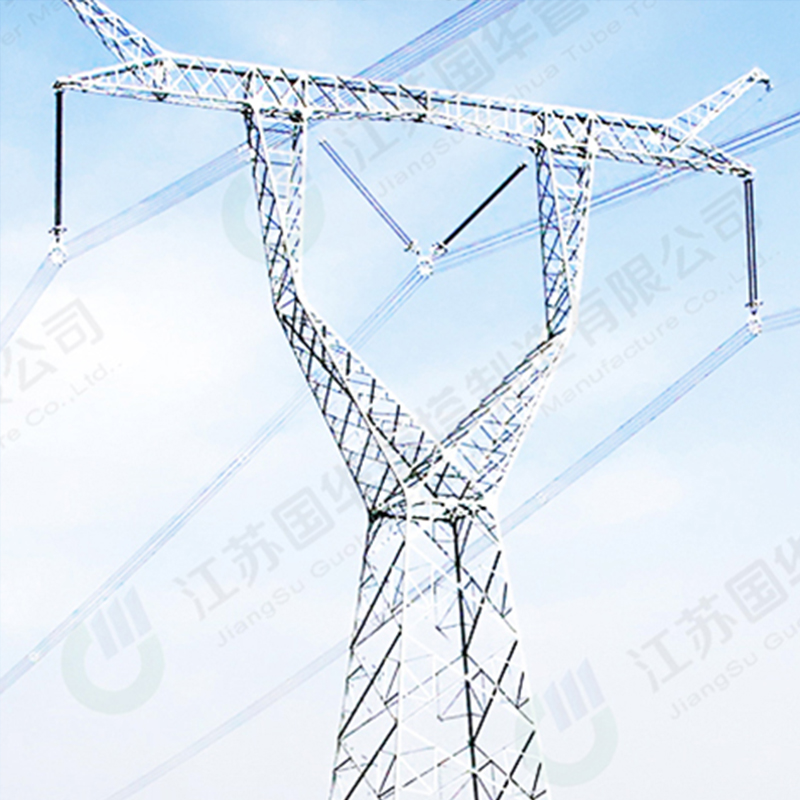

●  By Structure: Angle steel pylons (spatial truss, wide application), steel pipe pylons (excellent stress, large loads), steel pipe poles (compact, urban/suburban distribution lines).

2. Application Scenarios & Selection

●  Transmission Projects: Low-voltage grids prefer compact steel pipe poles; high-voltage+ grids use large-load steel pipe/angle steel pylons.

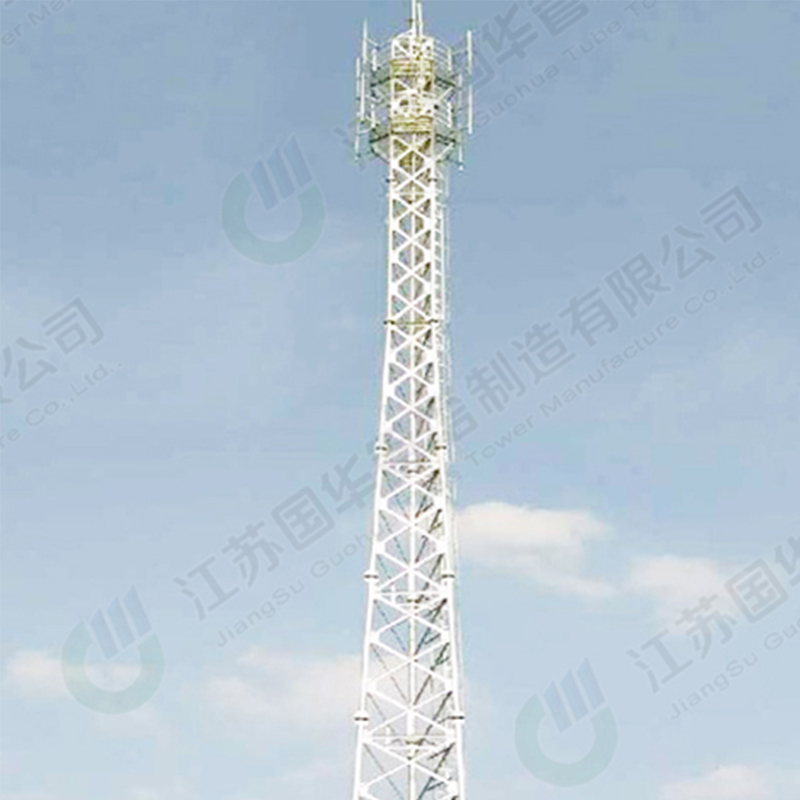

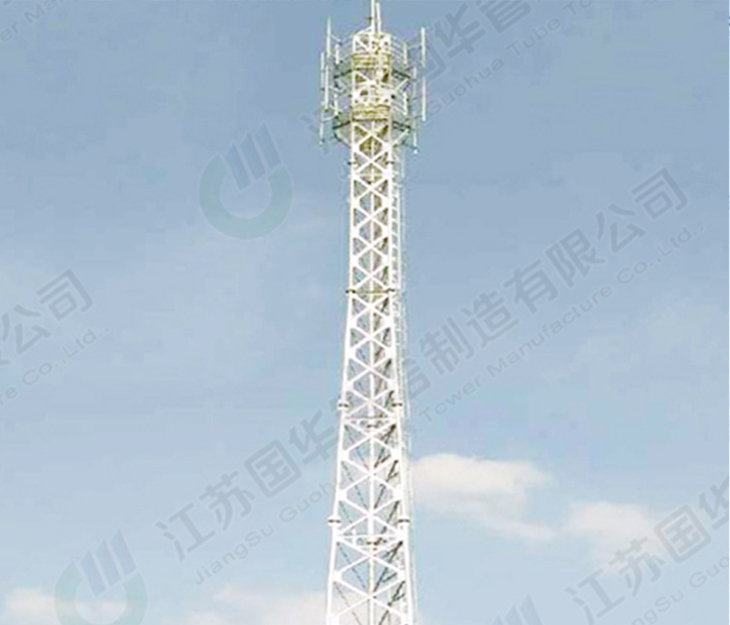

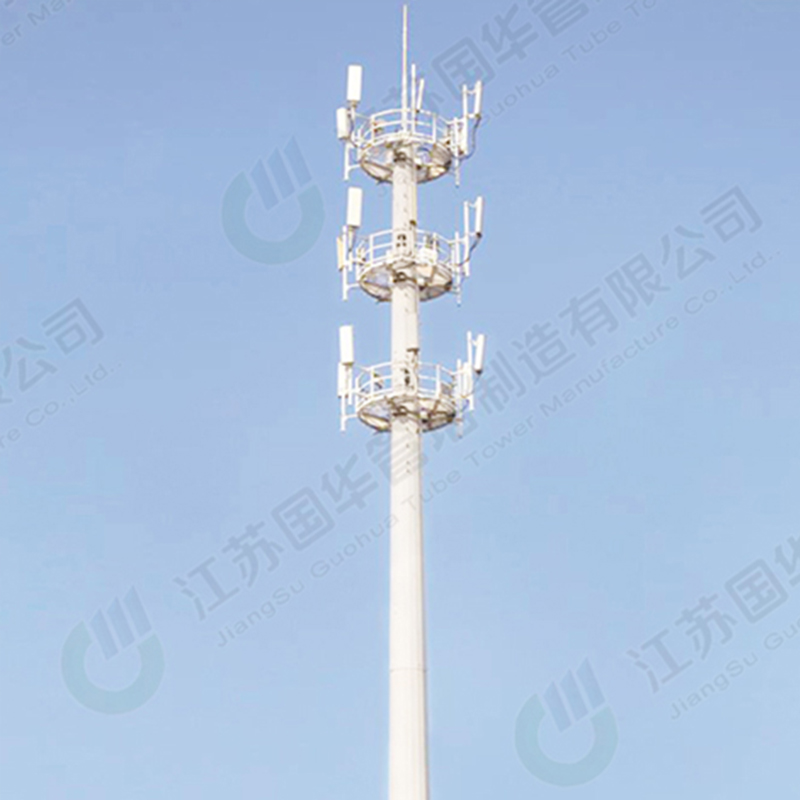

●  Extended Applications: Derivatives (communication towers, TV transmission towers) meet signal coverage and equipment support needs.

●  Special Environments: Enhanced wind resistance (high altitudes), upgraded anti-corrosion (coastal areas), optimized load design (heavy ice areas).

Full-process control ensures transmission safety:

●  Raw Material Control: Steel meets Q235/Q345 standards; tensile strength and toughness tested before factory entry.

●  Processing Control: Welding meets first-class standards; bolt accuracy conforms to specifications; hot-dip galvanizing parameters pass third-party testing.

●  Finished Product Testing: Load and weather resistance tests before delivery, ensuring compliance with international standards and extreme condition resistance.
