Solar Mounting System
Share:
Document No.: SMS-2025-V1.0
Version Status: Current & Valid
Application Scope: PV Power Plant Procurement, Technical Communication, Project Bidding
With modular design, the product matrix fits all scenarios. Core parameters are as follows:

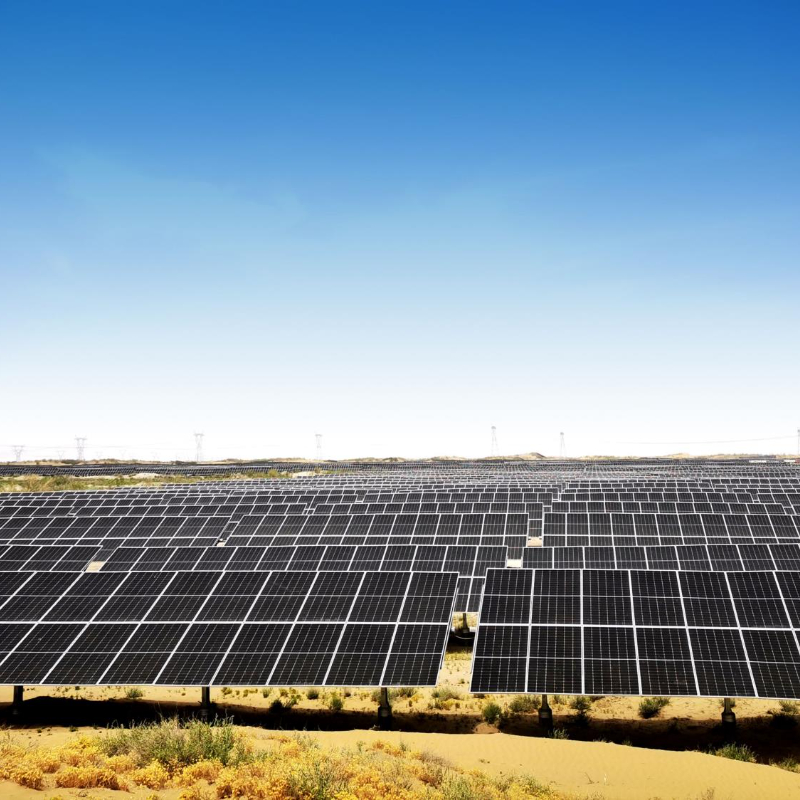

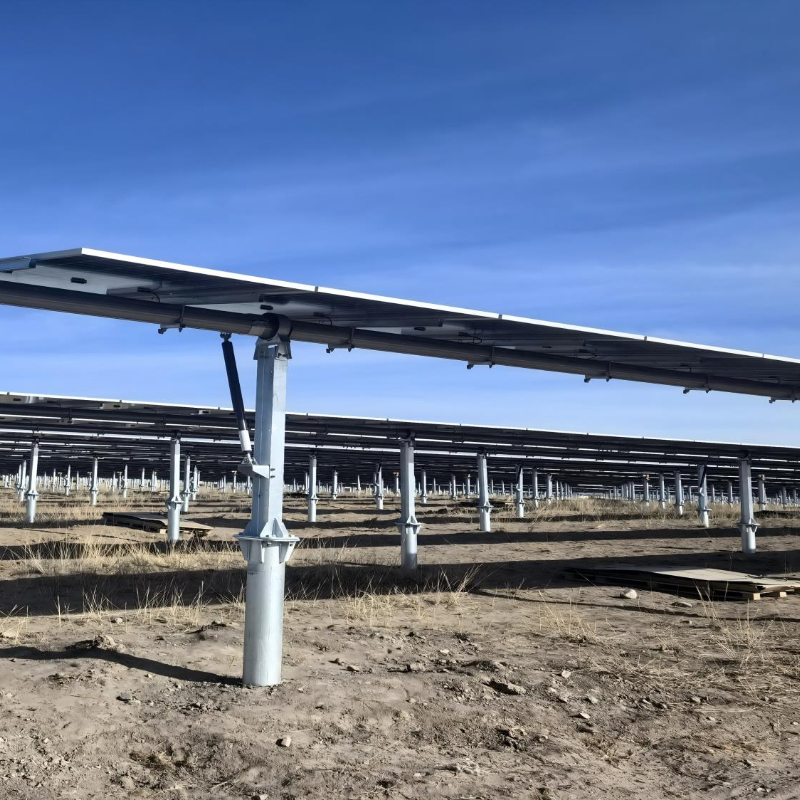

Active solar tracking adjusts module angles in real-time, with 15%-25% higher light utilization than fixed systems, ideal for large PV plants with open terrain.
|
Product Model |
Core Features |
Tracking Accuracy |
Applicable Terrain |
Extreme Weather Protection |
|
ESEEK-Steady |
Patented wind/snow resistance, dual-drive |
±0.3° |
Plain, Gobi |
Level 12 wind, 50cm snow load |
|
ESEEK-Twins |
Intelligent linkage, slope adaptation |
±0.5° |
Gentle slope (≤30°), hilly |
Level 11 wind, 40cm snow load |
|
ESEEK-Strider |
15m span, 60% less pile foundation |
±0.3° |
Large plain, tidal flat |
Level 12 wind, 30cm snow load |
|
ESEEK-Climber |
Terrain adaptive, no earthwork |
±0.5° |
Mountain (≤45°), gully |
Level 11 wind, 60cm snow load |
High-strength steel cable structure breaks terrain limits, suitable for complementary projects. Land utilization rate increases by over 30%.
|
Product Model |
Core Features |
Span Range |
Corrosion Resistance |
Typical Applications |
|
Honsine-2Cable |
Lightweight, ≥200㎡ coverage |
10-25m |
Galvanized (≥65μm) |
Mountain, pond, fishery-solar |
|
Honsine-3Cable |
Triangular structure, 40% better wind resistance |
15-30m |
Zn-Al-Mg (≥80μm) |
Desert, coastal salt spray area |
Mature pipe-tower design, balanced stability and cost. Installation efficiency is 20% higher than traditional brackets, suitable for distributed projects.
|
Product Type |
Installation Angle |
Load-Bearing |
Core Advantages |
Applicable Scenarios |
|

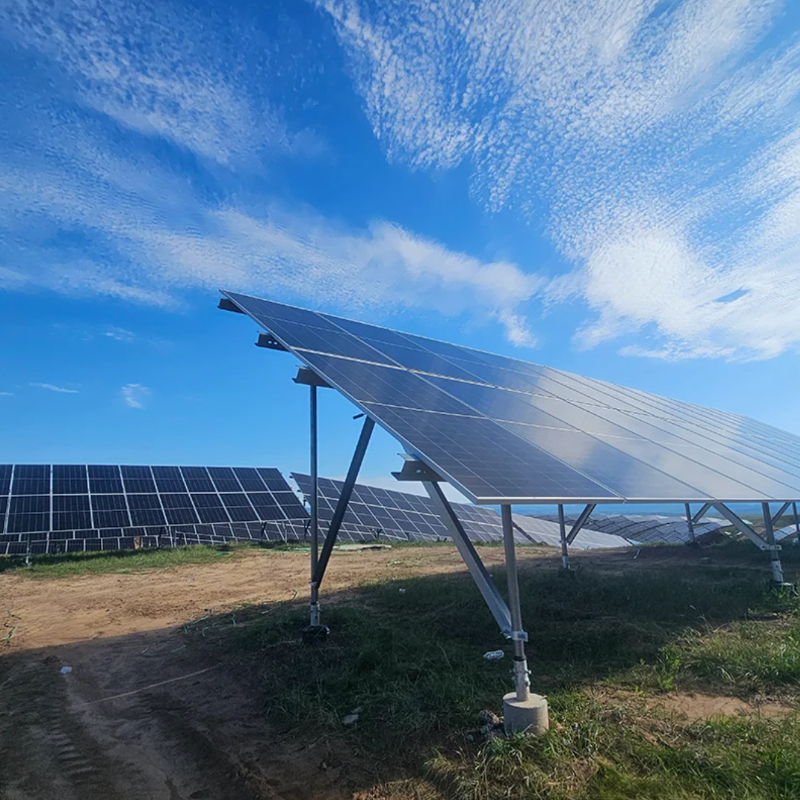

Single-Column Fixed |
20°-45° (custom) |
≤60kg/module |
Fast installation, 30% shorter construction |
Roof distributed, small ground plant |
|
Double-Column Fixed |
20°-60° (custom) |
≤120kg/module |
Strong load-bearing, stable |
Large ground plant, snow-prone area |
Main Structure: Q235/Q355 steel, yield strength ≥235MPa
Corrosion Protection: Hot-dip galvanizing (≥65μm); Zn-Al-Mg (≥80μm for harsh areas), salt spray life ≥5000h
Connectors: 304 stainless steel bolts with anti-loosening nuts
|
Performance Item |
Tracking System |
Flexible System |
Fixed System |
|
Longitudinal Bearing |
≥1.0KN |
≥0.8KN |
≥0.6KN |
|
Transverse Bearing |
≥8.7KN |
≥7.5KN |
≥6.0KN |
|
Vertical Bearing |
≥8.5KN |
≥7.0KN |
≥5.5KN |
|
Wind Resistance |
≤Level 12 |
≤Level 11 |
≤Level 12 |
|
Snow Load |
≥50kg/㎡ |
≥40kg/㎡ |
≥60kg/㎡ |
Control: Active tracking (light sensor + GPS), standby mode in bad weather
Energy Consumption: ≤0.1% of module power generation daily
Protection: Overcurrent, limit, power-off reset; wind-shielding in extreme weather
Full-Scenario Adaptability: Covers 95%+ PV scenarios, cuts terrain cost by 30%-50%
Efficient Power Generation: Tracking systems boost annual output by 15%-25%
Long-Term Safety: ≥25-year lifespan, matches PV module life
Cost-Effective: 10%-15% lower comprehensive cost than peers
Green Compliance: Lead/cadmium-free, meets REACH/RoHS, zero wastewater
|
Scenario |
Recommended Product |
Core Value |
Case Snippet |
|

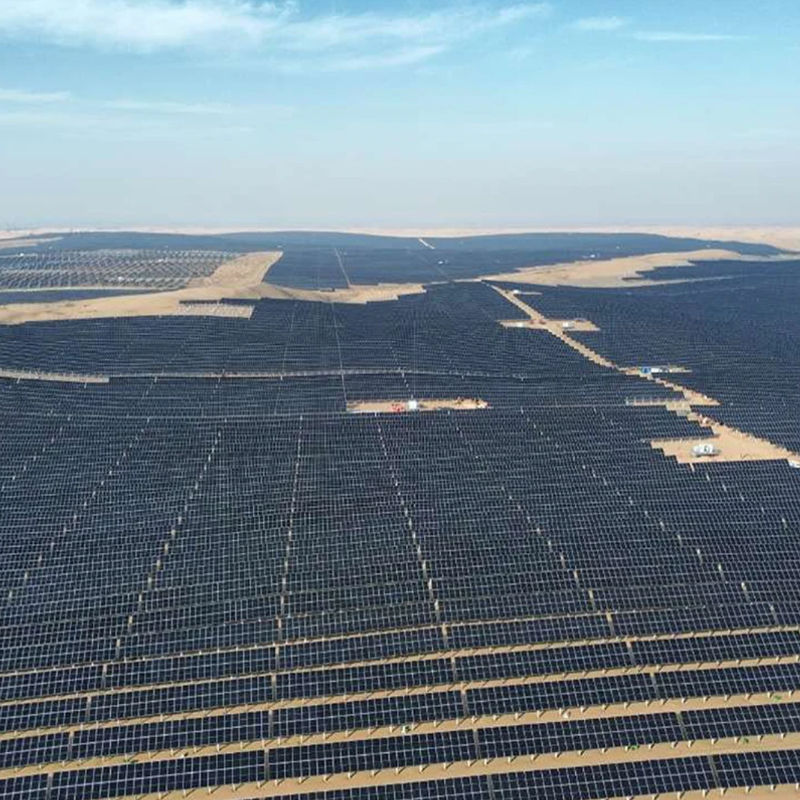

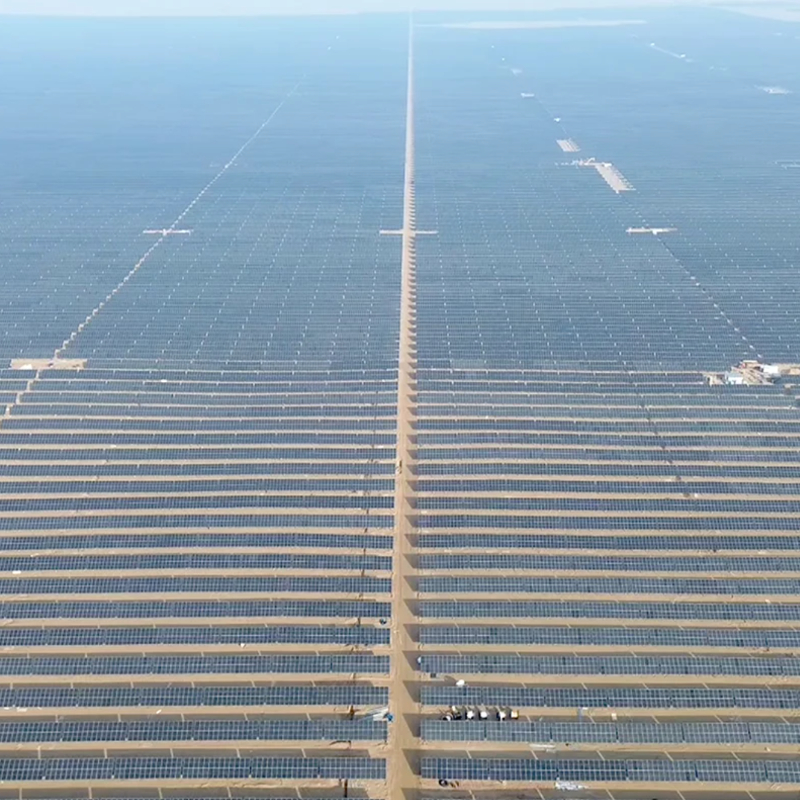

Large Plain |
ESEEK-Strider |
Cost-saving, high efficiency |
Inner Mongolia 500MW, 8% more output |
|

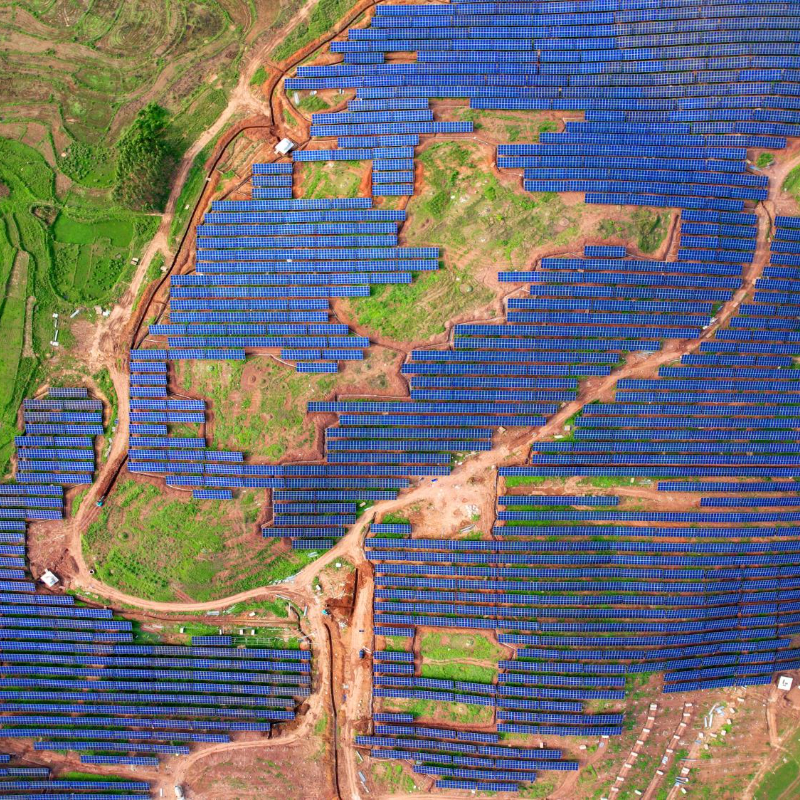

Mountain/Hilly |
ESEEK-Climber, Honsine-2Cable |
Terrain adaptive |
Yunnan 200MW, 40% higher utilization |
|

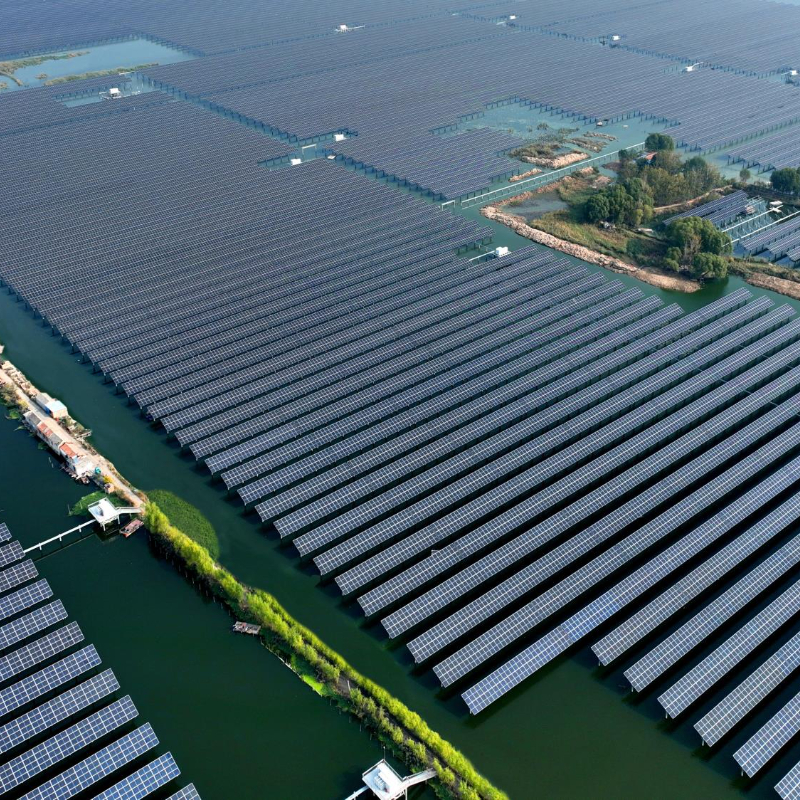

Fishery-Solar |
Honsine-2Cable |
Water area dual-use |
Jiangsu 100MW, 100% water utilization |
|
Coastal Area |
Honsine-3Cable |
Salt spray resistance |
Fujian 50MW, 5-year stable operation |
|

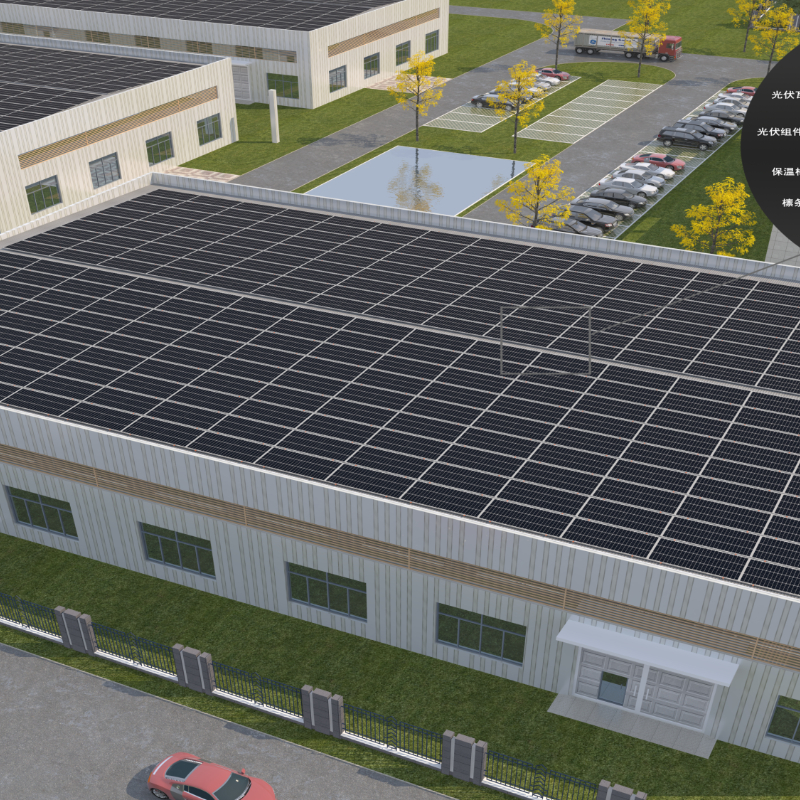

Roof PV |
Single-Column Fixed |
Fast, roof-friendly |
Zhejiang 10MW, 25% shorter construction |
ISO 9001 certified. Full-process quality control; each batch has test report, complying with IEC 62714.
Parameter Customization: Angle, size based on project/module
Process Customization: Enhanced corrosion protection for harsh environments
Service Customization: On-site guidance, training, maintenance
10-year warranty, lifelong structural maintenance. 24h response, 48h on-site; regular inspections ensure stable operation.
Packaging: Waterproof film + pallet, buffer for vulnerable parts
Transportation: Avoid rain/collision; no mixing with corrosives
Storage: Dry, ventilated; elevate ≥10cm to prevent rust
