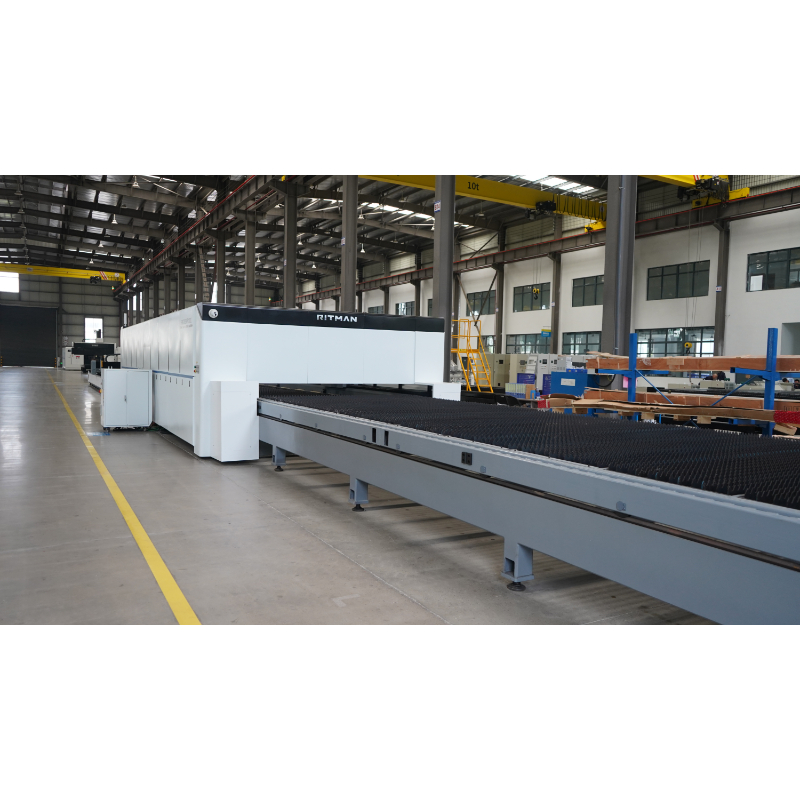

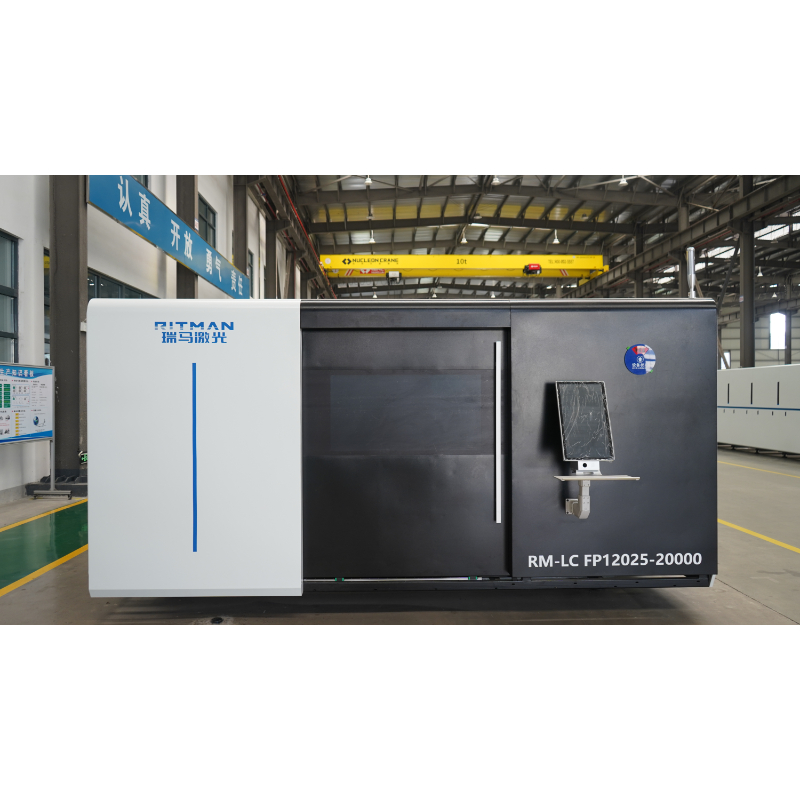

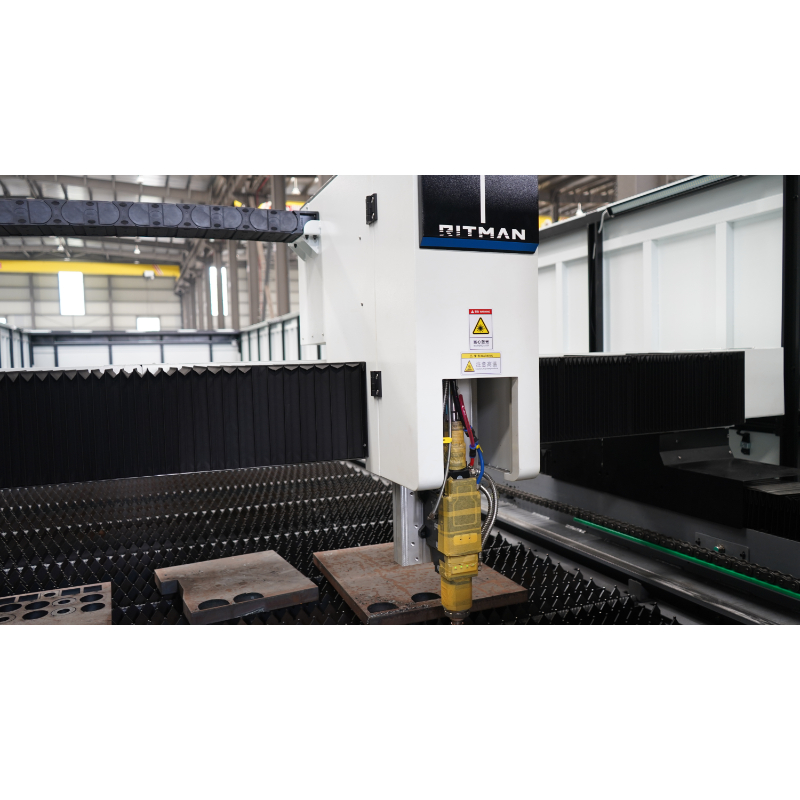

Exchange Platform Sheet Laser Cutting Machine
Share:
|
RM-LC FC |
||||||
|
Model |
RM-LC FC3015 |
RM-LC FC4020 |
RM-LC FC6020 |
RM-LC FC6025 |
RM-LC FC8025 |
RM-LC FC12025 |
|
Power |
3KW-20KW |
3KW-20KW |
3KW-60KW |
3KW-60KW |
3KW-60KW |
12KW-120KW |
|
Processing format |
3000mmx1500mm |
4000mmx2000mm |
6000mmx2000mm |
6000mmx2500mm |
8000mmx2500mm |
12000mmx2500mm |
|
Acceleration |
1.5G |
1.5G |
1.5G |
1.5G |
1.5G |
1.5G |
|
Max. No-load Speed |
140m/min |
140m/min |
140m/min |
140m/min |
140m/min |
140m/min |
|
Positioning Accuracy |
±0.05mm |
±0.05mm |
±0.05mm |
±0.05mm |
±0.05mm |
±0.05mm |
|
Repositioning Accuracy |
±0.03mm |
±0.03mm |
±0.03mm |
±0.03mm |
±0.03mm |
±0.03mm |

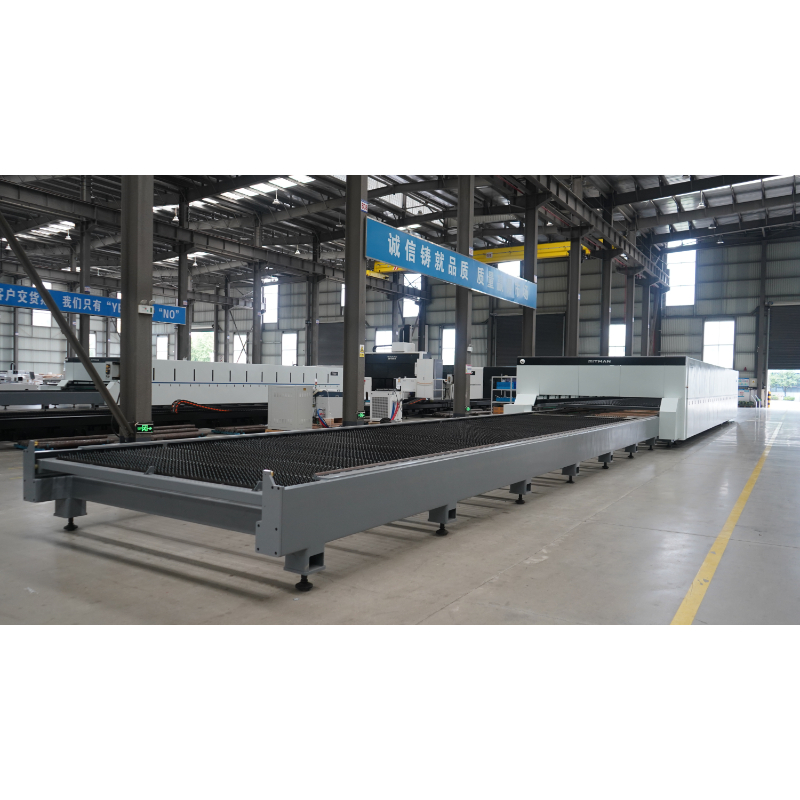

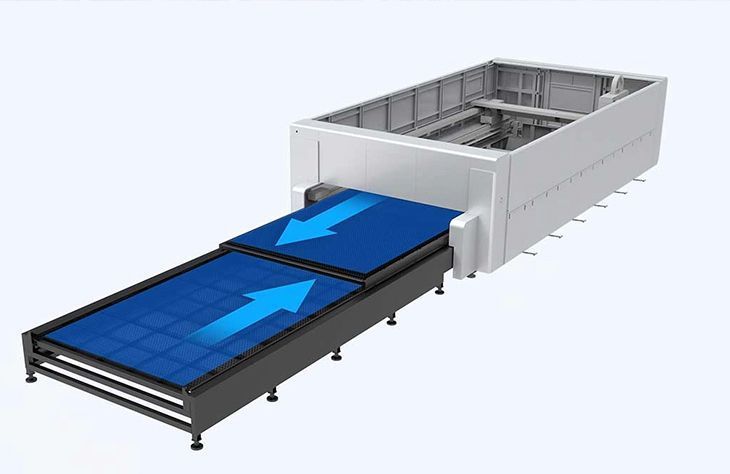

Exchange Workbench
The exchange workbench mainly consists of a main frame and a supporting material rackAdopting folding welding and then overall welding to form, it has good rigidity, highstrength, and large load-bearing capacity.

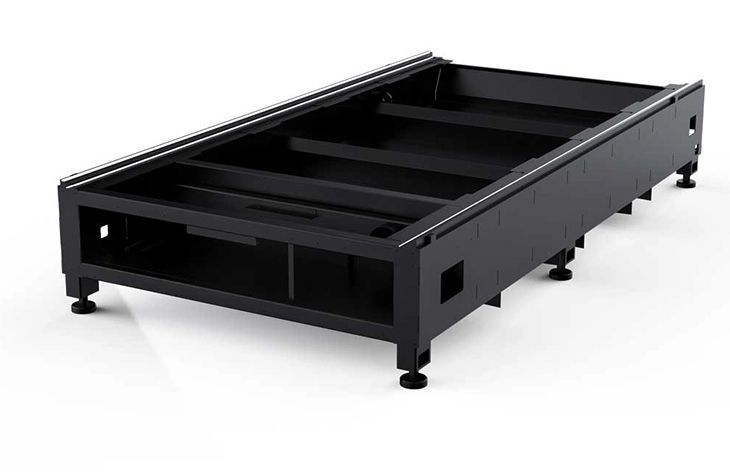

Welded Bed Body
Welding of mortise and tenon structure, secondary aging residual stress treatment, andprecision gantry milling machine ultra precision machining have increased rigidity,strength,and stability by more than 30% year-on-year.

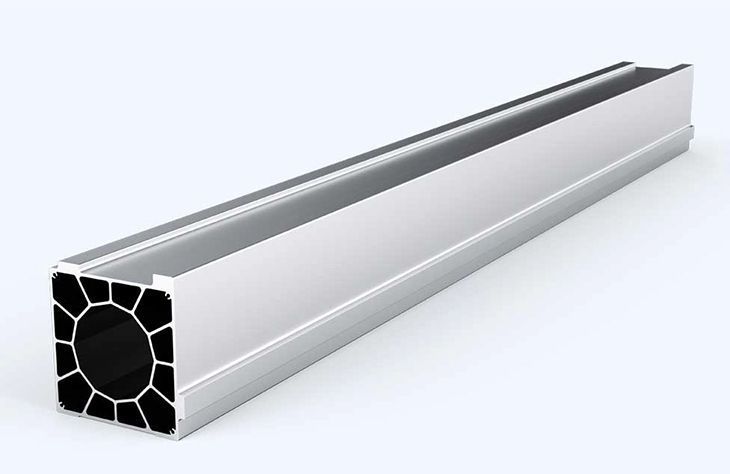

Aviation Extruded Aluminum Crossbeam
Adopting aviation extruded aluminum crossbeam, it is lightweight and hashigh-performance dynamic performance, improving efficient motion speed andacceleration.

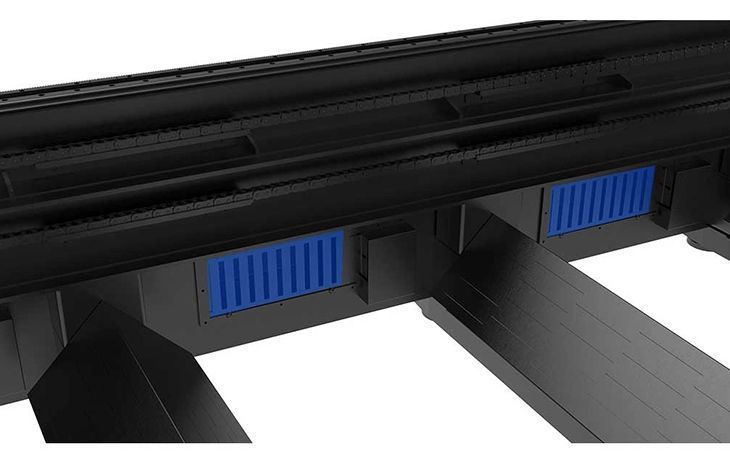

Partition Dust Remova
The exchange workbench mainly consists of a main frame and a supporting material rackAdopting folding welding and then overall welding to form, it has good rigidity, highstrength, and large load-bearing capacity.
